Définition et validation du protocole

de conception du véhicule



Objectifs de cette étape :

  • Réaliser les différentes parties du véhicule,
  • Enregistrer les difficultés et réponses apportées tout au long du projet.



1. Objectifs atteints

We have first accomplished the photovoltaic panel that will produce the energy needed for the movement of the medium.

In the second phase we created a prototype of the electric vehicle, following the instructions of the race, with recycled materials.In this way we have become familiar with the remote control that pilots the car but also managed to simulate the tests foreseen by the race.



Nous avons réalisé un panneau photovoltaïque qui devra produire l’énergie nécessaire pour le déplacement du véhicule.

Ensuite, nous avons créé un prototype du véhicule électrique, suivant le cahier des charges, en utilisant essentiellement des matériaux recyclés

De cette façon on a commencé à s’entraîner pour apprendre à piloter.

Abbiamo realizzato anzitutto il pannello fotovoltaico che produrrà l'energia necessaria per il movimento del mezzo.

In una seconda fase abbiamo creato un prototipo del veicolo elettrico, seguendo le istruzioni della gara, con materiali riciclati. In tal modo abbiamo preso confidenza con il telecomando che pilota l'auto ma anche siamo riusciti a simulare le prove previste dalla gara.



2. Illustrations

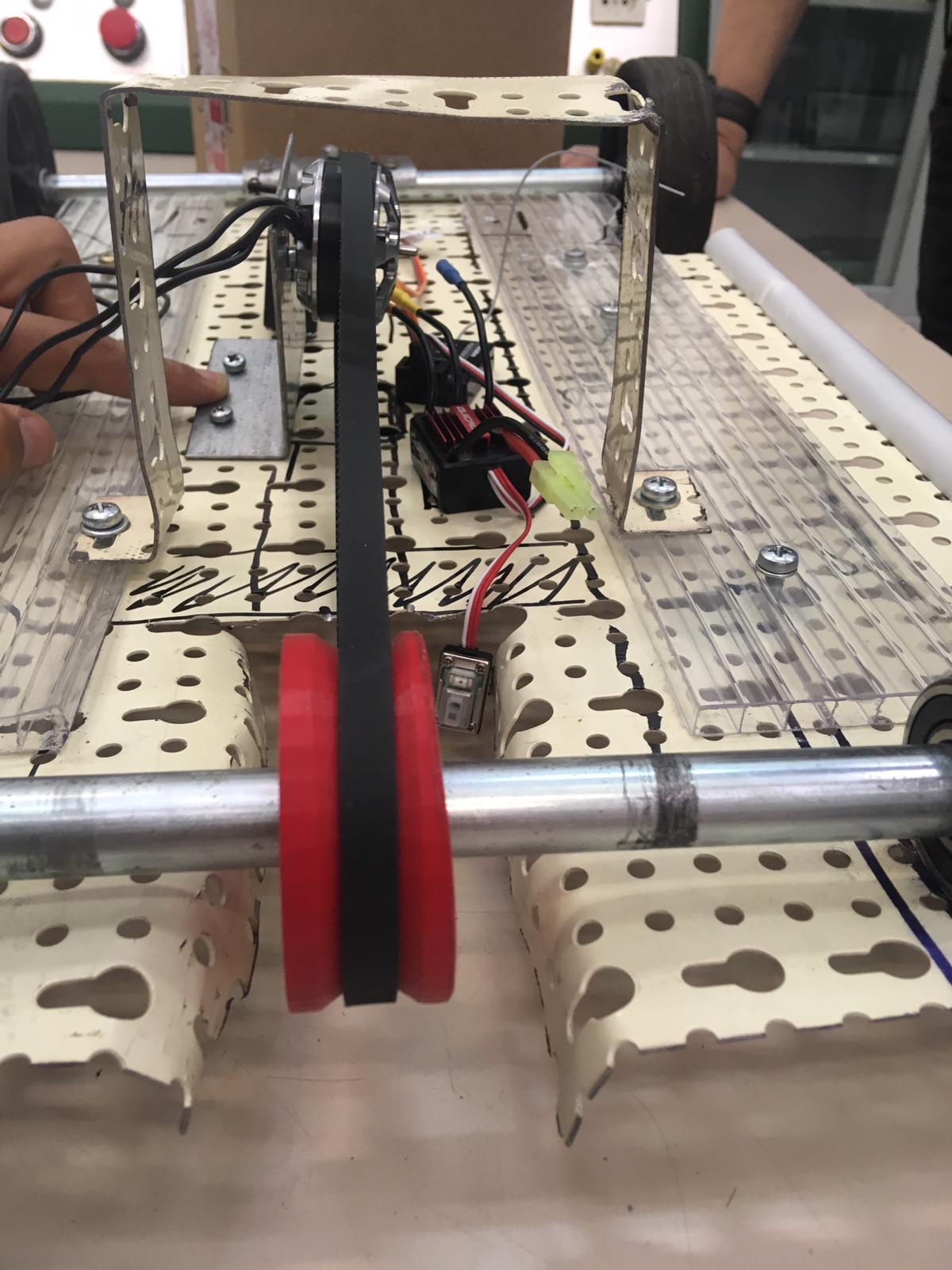

Detail of the drive wheel of the motion to the rear axle.

Particolare della ruota di trasmissione del moto all'asse posteriore.

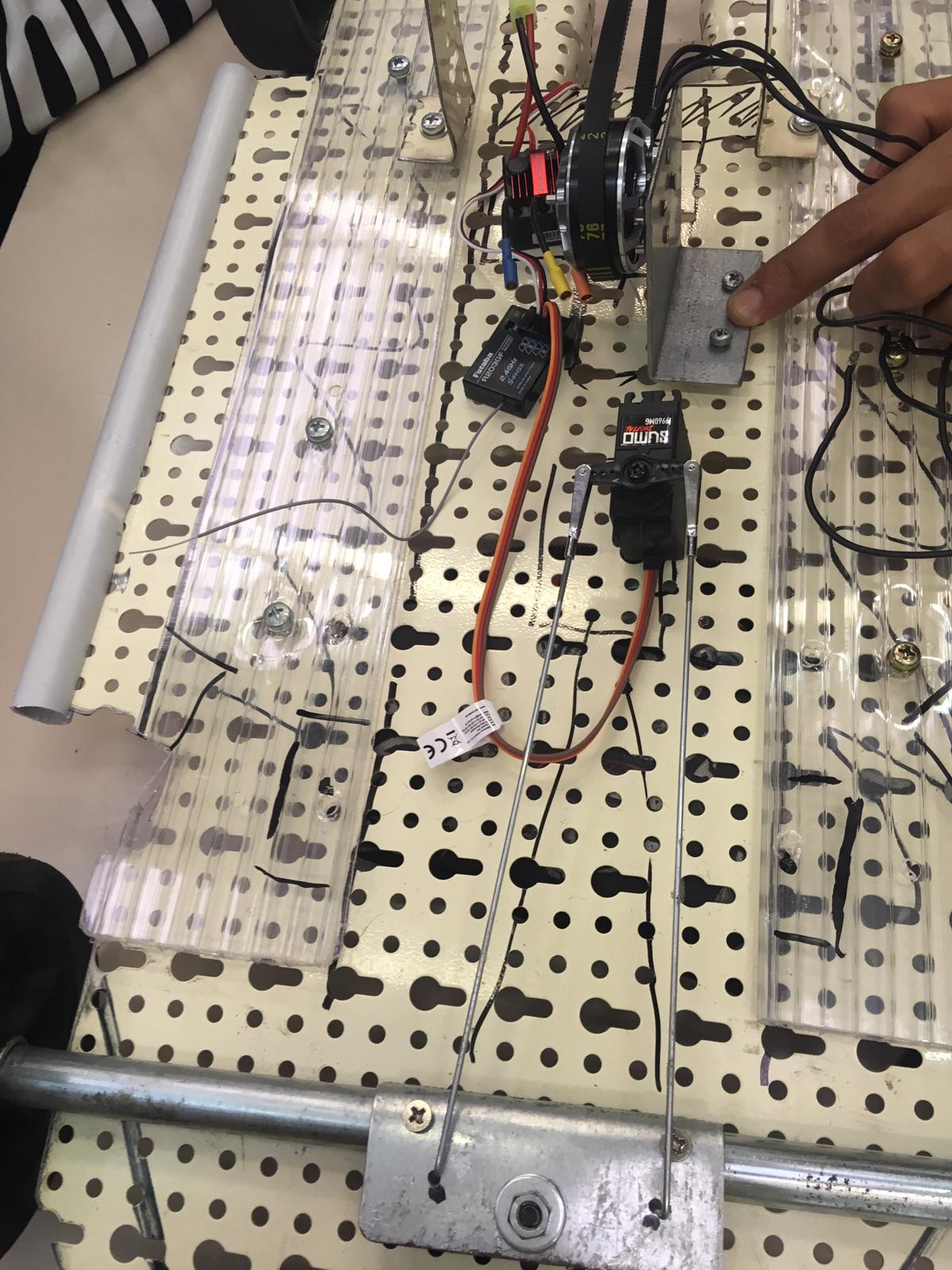

Steering detail.

Particolare dello sterzo.



3. Déroulement (Expériences, sortie, rencontres,recherches, etc.)



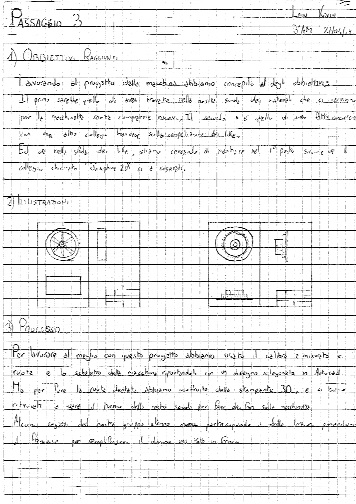

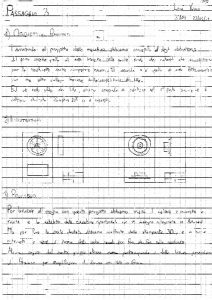

We printed on the school 3D printer the drive wheel to be fixed on the rear drive axle.It was useful for boys because they learned the use of 3d printing.

It was interesting to find in the school of the recovery material to be reemployed for the project.The material had to be functional for the electric vehicle.

This is why the trolleys of some disused welders have been invaluable in obtaining the wheels and shafts of the electric machine.



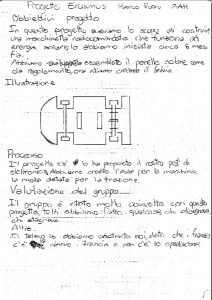

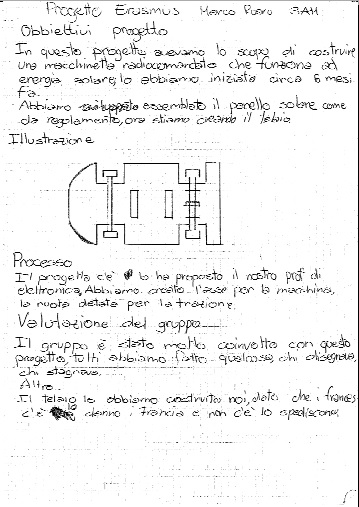

The chassis of the electric machine has been obtained from a metal panel of tool collection.The panel has been cut in order to allow both the housing of the components and the steering of the front wheels.



So it was a very useful experience for the boys.We understand that we are surrounded by materials that we think are useless or to throw, but instead help us to solve other needs.







On a utilisé l’imprimante 3D du lycée  pour réaliser la roue de transmission à fixer sur l’axe à propulsion arrière.

On a compris que dans l’environnement on est entouré de beaucoup d’objets considérés ne plus utilisables, tout simplement à jeter, mais qui peuvent en réalité bien répondre à d’autres nécessités et nous donner des solutions précieuses et durables.





Abbiamo stampato su stampante 3D della scuola la ruota di trasmissione da fissare sull'asse di trazione posteriore. E' stato utile per i ragazzi perchè hanno imparato l'uso della stampa 3D.

E' stato interessante trovare nella scuola del materiale di recupero da reimpiegare per il progetto. Il materiale doveva essere funzionale per il veicolo elettrico.

Ecco quindi che i carrelli  di alcune saldatrici in disuso sono stati preziosi per ricavare le ruote e gli alberi anteriori/posteriori della macchina elettrica.

Lo chassis della macchina elettrica è stato ricavato da un pannello metallico di raccolta utensili. Il pannello è stato tagliato in modo da consentire sia l'alloggio dei componenti sia la sterzata delle ruote anteriori.

E' stata quindi un'esperienza MOLTO UTILE per i ragazzi. Abbiamo capito che siamo circondati da materiali  che pensiamo essere inutili o da buttare, ma che invece ci aiutano a risolvere altre esigenze.





4. Appréciation du groupe

5. Autres commentaires (questions aux suiveurs, perspectives)

We have carried out with satisfaction the piloting simulation tests and we are preparing to build the final car model.



Avec satisfaction, on a effectué des simulations de pilotage et on va s'engager à construire le modèle finale:  le véhicule de compétition.

Abbiamo svolto con soddisfazione le prove di simulazione di pilotaggio e ci apprestiamo a costruire il modello di vettura finale.
